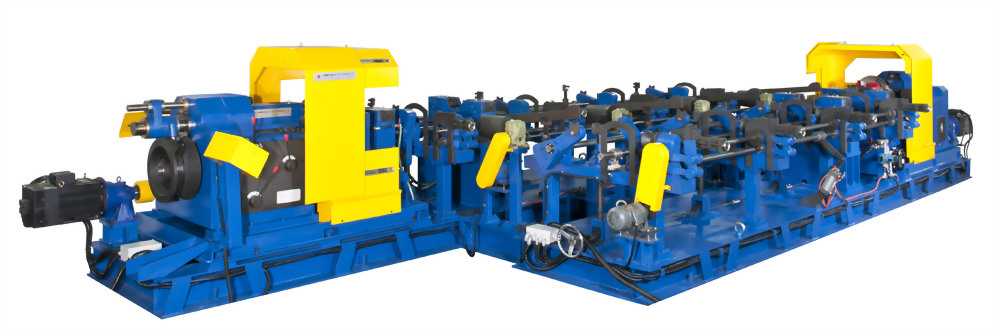

Auto Pipe Threading Machine

Auto Pipe Threading Machine: for pipes and tubs, easy-operating and speedy product. The steel plate welded bed and H-beam can help to strengthen its stability and bearing capacity. The cutting head can promptly thread the pipe by the cam mechanism and move forward and backward with linear guideway. The vise mechanism clips the pipe by the hydraulic system. The conveyer system combines gear box with single-beam rotary mechanism. And the stopper mechanism runs by the pulley. When lack of air pressure, the power supply will be disconnected at once automatically; the system is controlled by PLC.
MODEL YT-APTM -2 YT-APTM -4 YT-APTM-6
PIPE O.D. 1/2”~2” 1 1/2”~4” 2 1/2”~6”
CUTTING MOTOR 7.5 HP 10 HP 15 HP
CONVEYER MOTOR 5 HP 7.5 HP 7.5 HP
COIL PUMP 1/2 HP 1/2 HP 1/2 HP
