Tapping-machine

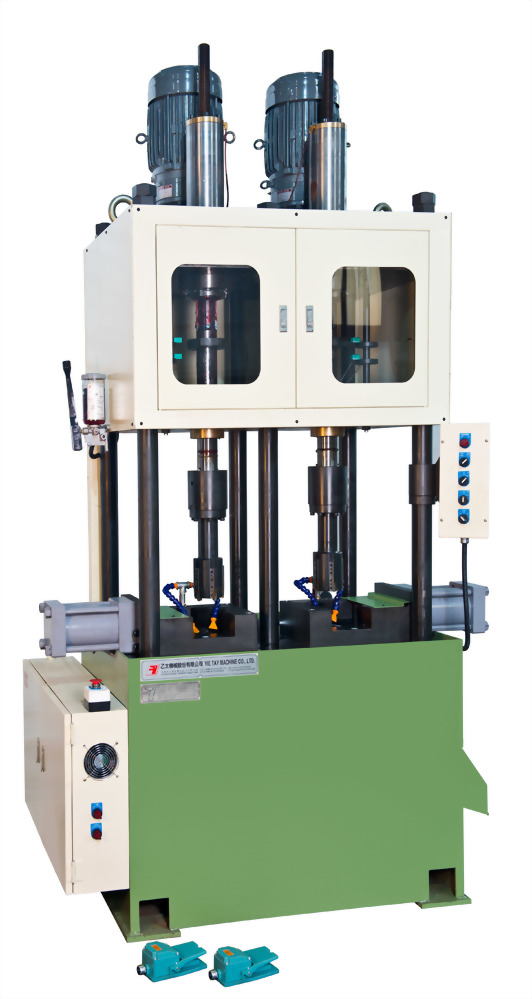

Tapping Machine: for steel pipe and tube / conduit pipe, simple operating and speedy products.

The steel plate welded bed is able to strengthen its stability and bearing capacity. The die head combining hydraulic system and conveyer system can moves to the appropriate position to work. When the previous process is done, the taps can fall automatically. To restart the working procedure, taps and items are to assembled manually. It is necessary to applying some lubricant to the spindles before operation

MODEL YT-TAP-1 YT-TAP-2 YT-TAP-4
PIPE O.D. 1/8”~3/4” 1”~2” 2”~4”
MAIN MOTOR 5 HP 5 HP 7.5 HP
OIL PUMP 2 HP 2 HP 2 HP
COOL PUMP 1/2 HP 1/2 HP 1/2 HP
SPINDEL 3 PCS 2 PCS 2 PCS
